motorized syringe twj Taw qhia

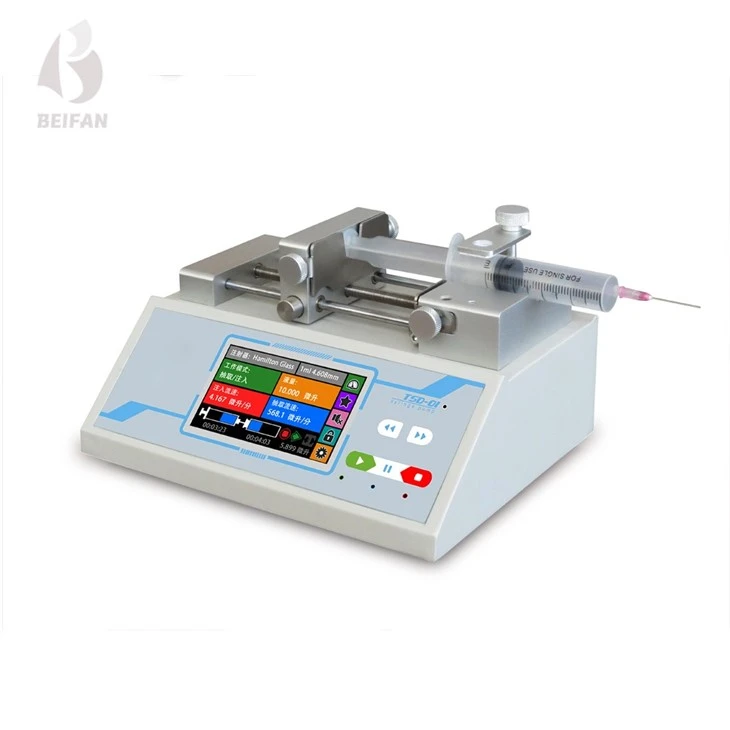

TYD01-01 Laboratory syringe twj tso kua mis
Qhov no yog lub twj tso kua mis siab precision uas txhawb ntau hom kev ua haujlwm thiab muaj cov yam ntxwv hauv qab no:
1. Nws txhawb ntau hom kev ua haujlwm thiab yog cov cuab yeej ua haujlwm siab.

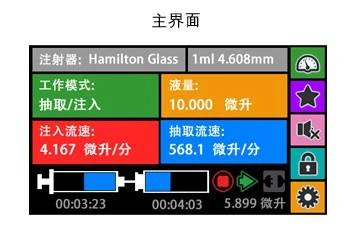

2. Nruab nrog high-resolution xim kov npo LCD rau qhov yooj yim parameter teeb.
3. Ntau yam ntawm qhov taw qhia teeb, kev ua haujlwm tau pom meej meej.
4. Txhawb ntau yam kev xaiv koob txhaj tshuaj.
5. Ua tau raws li qhov xav tau ntawm kev sim sib txawv, muaj kev tswj xyuas siab, thiab muaj kev tiv thaiv thiab lub tswb.
6. Txhawb tsib hom kev ua haujlwm nrog rau kev txhaj tshuaj thiab rho tawm.
7. Ua-hauv RS-485 kev sib txuas lus, txhawb Modbus raws tu qauv.
8. Tag nrho cov hlau plhaub, ntau yam ntawm lub zog tawm tswv yim, haum rau ntau lub sijhawm.
Haum rau 0.5-60ml koob txhaj, linear ceev 1um/min-60mm/min. Tsis tas li ntawd, nws tseem muaj cov yam ntxwv hauv qab no:
1. tuaj yeem nruab nrog lub koob txhaj tshuaj.
2. Ntau hom kev ua haujlwm muaj.
3. Xim kov npo, yooj yim rau kev khiav lag luam.
4. Kev them nyiaj yug lub vijtsam xauv thiab qhov tseem ceeb tsis muaj suab nrov.
5. Lub pob tau nruab nrog lub teeb qhia qhia txog kev ua haujlwm.
6. Txhawb ntau yam qauv thiab kho cov koob txhaj tshuaj.
7. Zoo tswj.
8. Kev tiv thaiv koob txhaj tshuaj thiab kev ceeb toom tsheb khiav.
9. RS485 kev sib txuas lus thiab Modbus raws tu qauv.
10. Sab nraud teeb liab tswj pib, nres thiab kev taw qhia.
11. Muaj ntau lub zog tawm tswv yim.
12. Tag nrho cov hlau casing.
motorized syringe twj tso kua mis technical parameter:
|
Siv tau syringe |
10ul{1}}ml; |
|
Hom kev ua haujlwm |
txhaj tshuaj, extraction, txhaj tshuaj extraction, extraction txhaj, nruam hom; |
|
Zaub |
4.3-inch xim LCD, daws teeb meem 480 * 272, xim 65K; |
|
Hom kev ua haujlwm |
resistive kov npo + khawm; |
|
Qhov tseeb |
±0.5%; |
|
Linear zog |
ntau dua 16kg, lub zog tuaj yeem hloov kho; |
|
Kauj ruam los ntawm kauj ruam rau microstep |
0.15625um / ustep; |
|
Kev nrawm nrawm nrawm |
150mm / min; |
|
Qhov kev txav qeeb tshaj plaws |
1 um / min; |
|
Sab nraud tswj 24V teeb liab input tswj pib thiab nres thiab kev taw qhia; |
|
|
Ua hauj lwm raws li txoj cai teeb liab tso zis; |
|
|
Lub zog hluav taws xob |
100-240V 50 / 60Hz; |
|
Environmental xav tau |
5-40 degree C<80% RH; |
|
Tag nrho cov hlau casing; |
|
|
Loj |
245 * 195 * 133mm |
Kev xaiv siv (ntws=kab nrawm × ntu ntu sab hauv lub koob txhaj tshuaj)
|
Syringe specification |
Syringe sab hauv txoj kab uas hla (mm) |
Yam tsawg kawg nkaus ntws (NL / min) |
Qhov siab tshaj plaws ntws (ml / min) |
|
ua 50ul |
1.03 |
0.004 |
0.124 |
|
1ml ib |
4.61 |
0.083 |
2.504 |
|
5ml ib |
10.3 |
0.417 |
12.498 |
|
10 ml |
14.57 |
0.834 |
25.009 |
|
25ml ib |
23.03 |
2.083 |
62.484 |
|
50 ml |
26.59 |
2.776 |
83.294 |
